TB6612FNG Driver IC for Dual DC motor

TB6612FNG is a driver IC for DC motor with output transistor in
LD MOS structure with low ON-resistor. Two input signals, IN1
and IN2, can choose one of four modes such as CW, CCW, short
brake, and stop mode.

Features
• Power supply voltage: VM = 15 V(Max)
• Output current: IOUT = 1.2 A(ave)/3.2 A (peak)
• Output low ON resistor: 0.5Ω (upper+lower Typ. @ VM ≥ 5 V)
• Standby (Power save) system
• CW/CCW/short brake/stop function modes
• Built-in thermal shutdown circuit and low voltage detecting circuit

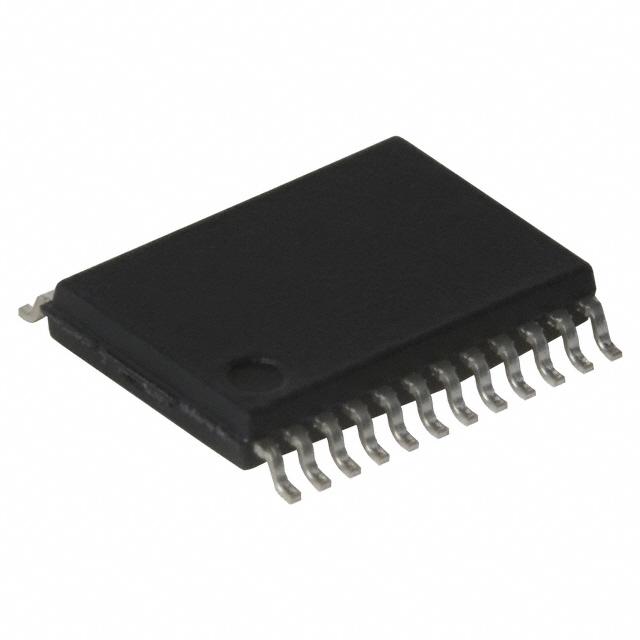

• Small faced package(SSOP24: 0.65 mm Lead pitch)
